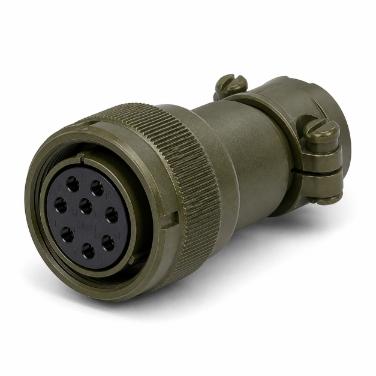

Image for reference only. See product specifications for details.
MS3101A24-11S
MS3101A24-11S is a cable recepatcle with 9 female socket contacts, 6 x Size 12, 3 x Size 8, 24 shell size, and 24-11 insert arrangement. It has an aluminium shell with a military green finish, silver-plated contacts, and 500+ mating cycles. Contact us for pricing, availability and volume orders.
- Part Number: MS3101A24-11S
- MIL Type / Specification: MIL-DTL-5015
- Shell: Aluminium, Military green
- Connector Style: Cable Recepatcle
Specifications
| Product Category: | Commercial Circular MIL Spec Connector |
|---|---|
| Shell Size: | 24 |
| Insert Arrangement: | 24-11 |
| Contacts: | 9 Socket (Female) |
| Contact Size: | 6 x Size 12, 3 x Size 8 AWG |
| Contact Plating: | Silver |
| Contact Termination: | Solder |
| Wire Gauge Range: | 12-14 AWG / 8-10 AWG |
| Mating Style: | Threaded / Screw |
| Current / Service Rating: | 23, 46 / A |
| Operating Voltage: | 700 V DC / 500 V AC rms |
| Temperature Range: | -55°/+125°C |
| Backshell Type: | Strain Relief Cable Clamp |
| Equivalent / Alternate Part Numbers: | MS3101E24-11S / MS3101F24-11S |
