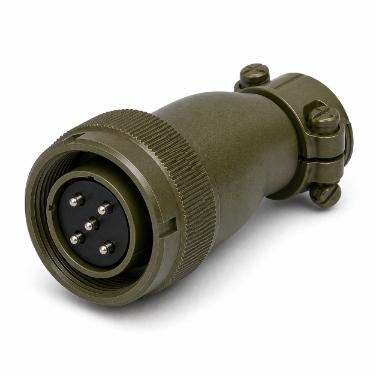

Image for reference only. See product specifications for details.
MS3106A32-17S
MS3106A32-17S is configured with 4 female socket contacts, Size 4 in a 32 shell, supplied as a cable plug. It uses an aluminium shell with a military green finish with silver-plated contacts and is rated for 500+ mating cycles.
- Part Number: MS3106A32-17S
- MIL Type / Specification: MIL-DTL-5015
- Shell: Aluminium, Military green
- Connector Style: Cable Plug
Specifications
| Product Category: | Commercial Circular MIL Spec Connector |
|---|---|
| Shell Size: | 32 |
| Insert Arrangement: | 32-17 |
| Contacts: | 4 Socket (Female) |
| Contact Size: | Size 4 AWG |
| Contact Plating: | Silver |
| Contact Termination: | Solder |
| Wire Gauge Range: | 4-6 AWG |
| Mating Style: | Threaded / Screw |
| Current / Service Rating: | 80 / D |
| Operating Voltage: | 1250 V DC / 900 V AC rms |
| Temperature Range: | -55°/+125°C |
| Backshell Type: | Strain Relief Cable Clamp |
| Equivalent / Alternate Part Numbers: | MS3106E32-17S / MS3106F32-17S |
