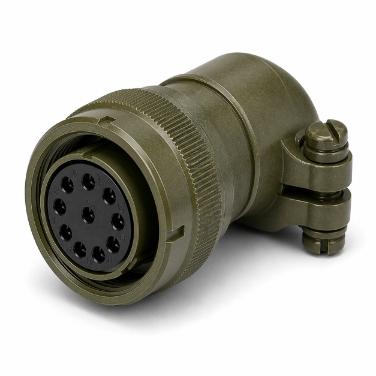

Image for reference only. See product specifications for details.
MS3108F18-1S
MS3108F18-1S is a 90° cable plug with 10 female socket contacts, Size 16, 18 shell size, and 18-Jan insert arrangement. It has an aluminium shell with a military green finish, silver-plated contacts, and 500+ mating cycles. Contact us for pricing, availability and volume orders.
- Part Number: MS3108F18-1S
- MIL Type / Specification: MIL-C-5015
- Shell: Aluminium, Military green
- Connector Style: 90° Cable Plug
Specifications
| Product Category: | Commercial Circular MIL Spec Connector |
|---|---|
| Shell Size: | 18 |
| Insert Arrangement: | 18-Jan |
| Contacts: | 10 Socket (Female) |
| Contact Size: | Size 16 AWG |
| Contact Plating: | Silver |
| Contact Termination: | Solder |
| Wire Gauge Range: | 16–20 AWG |
| Mating Style: | Threaded / Screw |
| Current / Service Rating: | 13 / A(B,C,F,G) INST(A,D,E,H,I,J) |
| Operating Voltage: | 700 / 250 V DC / 500 / 200 V AC rms |
| Temperature Range: | -55°/+125°C |
| Backshell Type: | Strain Relief Cable Clamp |
| Equivalent / Alternate Part Numbers: | MS3108A18-1S |
