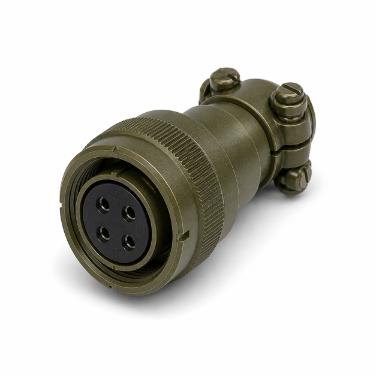

Image for reference only. See product specifications for details.
MS3111F8-4S
MS3111F8-4S: cable recepatcle, 4 female socket contacts, Size 20, shell size 8, insert 8-4, gold-plated contacts, aluminium shell with military green finish, 500+ mating cycles.
- Part Number: MS3111F8-4S
- MIL Type / Specification: MIL-DTL-26482 Series I
- Shell: Aluminium, Military green
- Connector Style: Cable Recepatcle
Specifications
| Product Category: | Commercial Circular MIL Spec Connector |
|---|---|
| Shell Size: | 8 |
| Insert Arrangement: | 8-4 |
| Contacts: | 4 Socket (Female) |
| Contact Size: | Size 20 AWG |
| Contact Plating: | Gold |
| Contact Termination: | Solder |
| Wire Gauge Range: | 20–24 AWG |
| Mating Style: | Bayonet |
| Current / Service Rating: | 7.5 / I |
| Operating Voltage: | 850 V DC / 600 V AC rms |
| Temperature Range: | -55°/+125°C |
| Backshell Type: | Strain Relief Cable Clamp |
| Equivalent / Alternate Part Numbers: | KPT01F8-4S / 62IN11F8-4S / PT01E8-4S |
